Integra DRX-3.4 9.2 Channel Home Theatre Receiver

$2,299.00 inc. GST

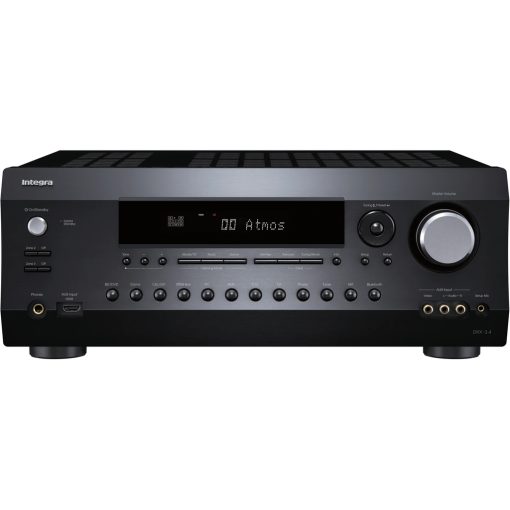

Integra DRX-3.4
Integra DRX-3.4 9.2 Channel Home Theatre Receiver

$2,299.00 inc. GST

SKU: DRX-3.4 Category: Brand:

The Integra DRX-3.4 delivers 130watts of dynamic power with nine channels of amplification allowing this superbly priced receiver to be used for 5.2.4 or 7.2.2 Dolby Atmos / DTS X cinema. Integra now includes a feature to allow the integration of a Sonos port to become part of the Sonos multi-room music system.

Integra DRX-3.4 Key Features;

Audio & Video Highlights
• 5.2.4/7.2.2-ch Dolby Atmos® and DTS:X® playback

• Dolby Atmos Height Virtualization

• Dolby Surround® and DTS® Neural:X upmixing

• HDMI®*1 supports 8K/60p (4:4:4/12-bit*2, 4:2:2/12-bit*2, 4:2:0/10-bit*3), 8K/30p (4:4:4/12-bit*2, 4:4:4/10-bit*3, 4:2:2/12-bit*3, 4:2:0/12-bit), 4K/120p (4:4:4/12-bit*2, 4:4:4/10-bit*3, 4:2:2/12-bit*3, 4:2:0/12-bit) video passthrough, HDR10+, Dolby Vision™, HDR10, HLG, BT.2020, VRR (Variable Refresh Rate), DSC (Display Stream Compression), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching), eARC (enhanced Audio Return Channel), DeepColor™, x.v.Color™, LipSync, and HDCP 2.3

• HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD*4

• Bidirectional Bluetooth® wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm® aptX™/apt X HD)
• 9.2-ch multichannel pre-outs*5

• Dedicated DACs support synced/independent D/A audio distribution in Zone 2 and Zone 3 (including HDMI/SPDIF/NET*6) via Zone 2*7 and Zone 3 speaker outputs, Zone 2 pre-out*8 and Zone 3 pre-out*5

• Share any MAIN audio source to a wireless headphone dock via Zone B line-out*8

• Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)

• Dirac Live® Room Correction supports multi-point acoustic calibration

• AccuReflex™ phase-matching solution for Dolby Atmos enabled speakers

• Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog Amplification Technology

• 185 W per channel (6 Ω, 1 kHz, 10% THD, 1-ch driven)

175 W per channel (6 Ω, 1 kHz, 1% THD, 1-ch driven, IEC)

• IMAX® Enhanced certified for IMAX® digital remasters

• Low-impedance amp system with 4-ohm speaker-driving capability

• Massive custom transformer and hand-selected audio parts

• Non-phase-shift amp-circuit topology for clear and cohesive sound

• Optimum Gain Volume Circuitry

• Precision DAC supports 192 kHz/24-bit multichannel D/A conversion

• VLSC™ (Vector Linear Shaping Circuitry) filtering technology (Front L/R)

• Front L/R speaker bi-amping capability in 5.2/7.2/5.2.2-ch configuration

• PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio

• Independent tone controls (bass/treble) for all channels

Network Features and Multi-Zone Audio
• Isolated quad-core SoC board supports high-speed 802.11ac (2×2 MIMO*9) Wi-Fi®

• Amazon Music HD*11, Spotify®, TIDAL, TuneIn, and Deezer*10

• Works with Sonos supporting multiple Sonos Connect/Port control and Volume Passthrough mode*12

• Works with Alexa supporting multi-room music*13

• Works with Ok Google*14 and Chromecast built-in™

• AirPlay 2 multi-room audio with Siri voice control

• DTS Play-Fi®*15 multi-room audio via Integra Music Control App*16

• Compatible with the Integra Remote app for iPad, iPhone, and Android™*16

• Roon Tested certified for the Roon Core

• Hi-Res Audio via network (DSD 11.2 MHz/5.6 MHz/2.8 MHz*17, FLAC, WAV [RIFF], ALAC, and AIFF to 192 kHz/24-bit*18)

Integra DRX-3.4 Audio-Video Connections

• 7 HDMI inputs (1 front), Main Out (eARC), Sub/Zone 2 Out

• 2 digital audio inputs (rear, 1 optical, 1 gold-plated coaxial, assignable)

• 7 gold-plated analog audio inputs (6 rear, assignable, 1 front)

• Gold-plated phono input and built-in equalizer (MM) for turntable connection

• USB input (5 V/1 A) for audio playback (rear)

• 3.5 mm Dirac Live/AccuEQ Advance setup mic input (front)

• 3 gold-plated composite video inputs (2 rear, assignable, 1 front)

• 1 gold-plated component video input (rear, assignable)

• 6.3 mm gold-plated headphone jack

• 9 gold-plated speaker posts with transparent knobs

• Gold-plated 9.2-ch pre-outs*5

• Gold-plated Zone 2 pre-out / Zone B line-out (analog RCA*8)

• Ethernet LAN terminal

Custom Integration Features
• 10BASE-T/100BASE-TX Ethernet supports setup and IP control via web browser

• Works with Crestron®, Control4®, Savant, URC, ELAN, and RTI automation

• RS-232 input for external control and automation

• 2 IR inputs and 1 output

• 3 programmable 12 V trigger-outs with adjustable delay (A: 100 mA, B: 25 mA, C: 25 mA)

• Dealer-settings memory storage and recall function

• AC inlet for detachable IEC power cable

• Optional rack-mount kit (IRK-155-3D)

Additional Features
• Aluminium front panel and volume knob

• Front-to-Surround/Height speaker switching in Stereo Assign Mode

• One-touch volume memory preset assignment to individual A/V inputs via front panel

• OSD function displays A/V input signal data, output signal/settings data, and network information

• Dolby® TrueHD and DTS-HD Master Audio® decoding

• Advanced Music Optimizer™ improves compressed audio playback quality

• High-definition GUI over HDMI

• Super Resolution 1080p to 4K and 1080p/4K to 8K video upscaling via HDMI

• Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz)

• A/V Sync Control (Up to 500 ms in 1 ms steps at 48 kHz*19)

• Sleep timer, HDMI passthrough, and network standby

• 40 FM/AM/internet radio presets with station-naming (10 characters)

• 3-Mode display dimmer (Normal/Dim/Dimmer)


Integra DRX-3.4 Dimensions (W x H x D): 435 x 174 x 376.5 mm
Weight: 11.0 kg
