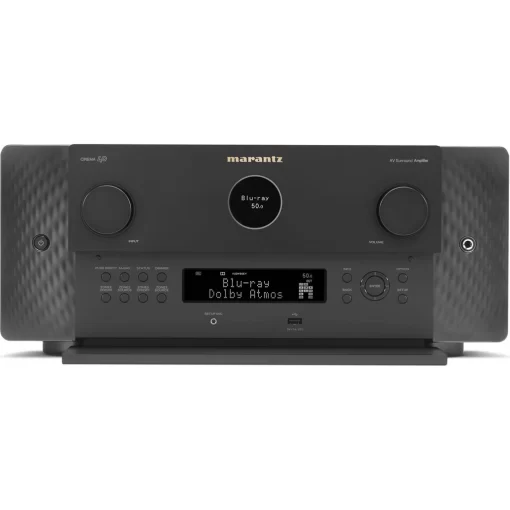

The Marantz Cinema 40 offers Premium 9.2 channel 125-watts-per-channel amplification, Dolby Atmos, DTS:X Auro 3D, and 8K Ultra HD plus HEOS® built-in streaming. CINEMA 40 is a statement piece and reference level A/V Receiver.
Excellence Only Begins with Performance
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world’s most demanding home theatres.
Marantz Cinema 40 Features and Specifications:
- Peerless performance: Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.
- Technology leader: CINEMA 40 comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
- Exquisite design: A modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.
Marantz Cinema 40 Specifications:
POWER AMPLIFIER
Number of Powered Channels |
9 |
Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) |
|
Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive) |
125 W |
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) |
165 W |
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) |
235 W |
70% Guarantee |
Yes |
Discrete Power Amplifier |
Yes |
Amplifier Topology |
Class A/B |
Current Feedback Topology |
Yes |
Bi-Amp Drive |
assignable |
MULTICHANNEL SURROUND TECHNOLOGIES
DTS |
DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
Dolby |
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualisation, Dolby Atmos Music, Dolby Surround |
Other |
IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo2 |
Max Number of Processing (Preamp) Channels |
11.4 |
INPUTS/OUTPUTS
Composite In / Out |
2 / 0 |
Component In / Out |
1 / 0 |
HDMI In / Out |
7 / 3 |
Multi-Room Video Out via HDMI |
Yes |
Analog In / Fixed Level Out |
6 in / 0 out |
Phono (MM) In |
Yes |
Digital In: Optical / Coaxial |
2 / 2 |
Multi-Room Out: analog / digital |
2 / 0 |
Multichannel Preamp Out |
11.4 |
Subwoofer Out |
4 (independent) |
7.1 multichannel input |
Yes |
Number of Speaker Terminals |
11 |
Speaker A / B |
assignable |
Multi-Room Speaker Terminal |
assignable |
Front Inputs |
USB-A |
USB Audio |
Yes |
FM Tuner with RDS |
No |
DAB+ Tuner |
No |
HDMI
Total HDMI Inputs / No. Support 8K |
7 / 7 |
HDCP2.3 support |
Yes |
HDMI Outputs: Main / Zone |
2 / 1 |
Analog to HDMI Video Conversion |
Yes |
HDMI Upscaling |
1080P/4K to 8K |
Max resolution @ framerate |
8K @ 60Hz, 4K @ 120Hz |
Audio Return Channel |
eARC |
Video Dynamic Range |
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
ALLM (Auto Low Latency Mode) Pass-through for gaming |
Yes |
Variable Refresh Rate / Quick Frame Transport |
Yes / Yes |
HDMI Pass-Through in Standby Mode |
Yes |
CEC |
Yes |
DSD Audio over HDMI |
Yes |
Auto LipSync |
Yes |
PERFORMANCE TECHNOLOGIES
Copper Plated Chassis |
No |
Toroidal Power Supply Transformer |
No |
Hyper Dynamic Amplifier Modules (HDAM) (List version) |
Yes |
Pure Direct Mode |
Yes |
Gold Plated RCA Terminals |
Yes |
Clock Jitter Reducer |
Yes |
ACOUSTIC / ROOM CORRECTION
Audyssey |
MultEQ XT32 |
Audyssey Dynamic EQ / Dynamic Volume |
Yes / Yes |
Audyssey LFC |
Yes / Yes |
Dirac Live Support |
Yes |
Variable Cross Over |
Yes |
Optimised Bass Redirection |
Yes |
Bass Sync |
Yes |
MUSIC FILE SUPPORT
Lossy Formats |
MP3 / WMA / AAC |
Lossless formats |
FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
DSD Audio |
2.8MHz / 5.6MHz |
Gapless Playback |
FLAC, WAV ,ALAC ,DSD |
Compressed Audio Enhancer: MDAX2 |
Yes |
Network Audio Sharing |
Yes |
STREAMING SERVICES
HEOS Multi-room and Streaming |
Yes |
AirPlay Audio Streaming |
Airplay 2 |
Internet Radio |
TuneIn |
Spotify* |
Spotify Connect |
Pandora |
Yes |
SiriusXM |
Yes |
Other Streaming Services * |
Amazon Music HD/
Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix |
Roon tested |
Yes |
NETWORK CONNECTIVITY
Ethernet Ports |
Yes |
Wi-Fi (include version / band) |
Yes |
Bluetooth (Include version) |
Yes |
Bluetooth Re-transmit for Bluetooth headphones |
Yes |
SMART HOME INTEGRATION AND CONTROL
Voice Assistant Compatibility |
Alexa / Google Voice Assistant / Apple HomePod |
App for Smart Phones & Tablets (iOS & Android) |
Marantz AVR App, HEOS |
HEOS Multi-Room Integrated |
Yes |
HEOS Link Compatibility: IR/ IP |
Yes / Yes |
Multi-Room zones |
3 |
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog |
2 Ch / 2 Ch / Yes / Yes |
Zone Audio Output: Speaker / Preout |
Yes / Yes |
Zone HDMI Output from HDMI Source |
Yes |
Control Connectivity |
IP Control / RS232 Control / Web Control / App Control |
IR Flasher In |
Yes |
Marantz Remote Bus |
Yes |
DC Trigger Output |
3 |
HDMI Diagnostics |
Yes |
OTHERS
Front Display |
2 line FLD + port hole OLED |
Primary Display Size (diagonal in/mm) |
|
Secondary Display Size (diagonal in/mm) |
|
GUI Languages |
9 |
Setup Assistant |
Yes |
Smart Select on Remote |
Yes |
Firmware Update by Network / USB |
Yes / Yes |
ECO Mode |
Yes |
Auto Power off |
Yes |
Sleep Timer |
Yes |
GENERAL
Available Colours |
Black/Silver-Gold |
Metal Front Panel |
Yes |
System Remote Control |
RC-048SR |
Power Consumption in W |
710 |
Power Consumption No-Sound (ECO on/off) in W |
65 W / 110 W |
Standby Consumption in W |
0.2 |
CEC Standby Consumption in W |
0.5 |
Network Standby Consumption in W |
Less than 2.0 |
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm |
440x414x185
(440x414x254)
【440x401x185】 |
Weight in kg |
15.1 |
What’s in the box |
Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord |
